Product Kind：Energy Saving Device
Product Name：3 in 1 Energy Saving DevicePS-serials

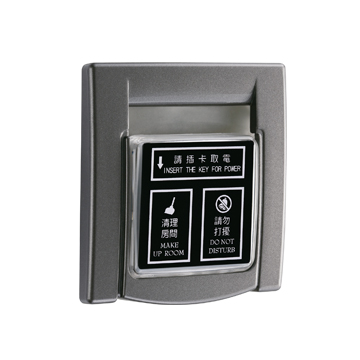

PS-30 Save Energy and Door bell with touch panel system
Features:
|
|
Combine these three buttons1.) Do not disturb. 2.) Clean 3.) Door Bell, into the save energy Device. |
|
|
Using touch panel to be much convenient; beautiful; and newfangled. |
|
|
Combine various LED color and collocate with blue light background luminance to increase the warm and romantic flavor in room |
|
|
Go with save energy device, easy construction and lower prime cost. |
|
|
After pressing the “Do not disturb” button, the door bell will be not working. |
|
|
Users can monitor the status by RS-485 or TCP/IP. |
|
|
It can send the card messages back to the monitor in the front-desk when insert the card. |
|
|
Users can acquire the room data from the save energy device. |
|
|
Power on, Power off, and Pre-cool function by front-desk. |
Specification:
|
Item |
PS-30 Save energy with touch panel system |
PS-12 Save energy with touch panel system |
TP-6 3 in1 Touch Panel |
|
Power Consumption |
DC 12V/1A |
DC 12V/1A |
DC 12V/1A |
|
Light Indicator |
LED(Red, Green, Blue, Yellow) |
LED(Red Green, Blue, Yellow) |
LED(Red Green, Blue, Yellow) |
|
Sound Indicator |
Buzzer |
Buzzer |
Buzzer |
|
Memory Capacity |
600 Events(Including in and out) |
None |
None |
|
Card Specification |
Temic Card/Mifare |
Any card |
None |
|
Delay Seconds |
5-40 seconds |
5-40 seconds |
None |
|
RS485 Connection Capacity |
One for 8 port(32set/port)=256 sets |
None |
None |
|
Security Detector |
3 Sets |
None |
None |
|
Alarm Output |
DC-12V |
None |
None |
|
Meas |
85×95×44 mm |
85×95×44 mm |
85×95×44 mm |
|
Junction Box: |
75×75×50 mm |
75×75×50 mm |
75×75×50 mm |
