─ [ Product ] ─Home / Product /Proximity access control systemPROMI -100C

Product Kind:Access Control System

Product Name:Proximity access control systemPROMI -100C

1

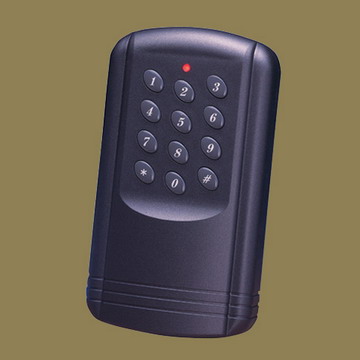

PROMI-100C Proximity Access Control System





Features



*

CARD CAPACITY

Memory storage up to 4000 users capacity.

*

READER RANGE

Up to 20 CM

*

ENTRY METHODS

Functional card/password can access and set entry method:
(1)CARD or PIN
(2)CARD & PIN
(3)CARD only



*

OPERATION

u        LED indicator and beeper for easy operation.

u        Functional password or Master Card may be used for checking and modifying system functions.

Time door remains open can be programmed from 01~99 seconds directly from keypad panel.

*

CARD LOST

Lost cards can be voided to prevent unauthorized access.



*

COMPUTER CONNECTING

Connect to PC through RS-232/485, the records can save in computer.



*

SYSTEM ALARM

Alarm will be activated and temporarily stop the system from function for 1 minute when:

1.      The PIN is incorrectly entered/ access with an unauthorized card is attempted 4 consecutive times.

System is impaired or destroyed.



*

MEMBRANE TYPE KEYPAD READER

The reader is newly designed with weather resistant and dust proof under any circumstances.



*

INSTALLATION

Applicable to all different types of doors including wooden doors, automatic door, rolling doors and turnstiles can be installed in new or existing doors. Streamline and elegant appearance. Easy for maintenance.



*

QUALITY GUARANTEE

Comply ISO 9001, CE international quality certification.





SPECIFICATION

ITEM

PROMI-100C

KEYPAD

Membrane Type
10 Number Keys
2 Function Keys

READER

Proximity

MEMORY

EEPROM
RAM 2k (Expandable to 8k)

INDICATOR

LED: Green-Door Open
Red-Stand by

POWER SUPPLY

DC9V. 12V
110V or 220V power adapter

POWER CONSUMPTION

Stand by-0.25w
Operating-0.5w

OUTPUT

Lock Relay       1Amp,24V dc/0.5Amp, 110~120V ac
Auxiliary Relay 1Amp,24V dc/0.5Amp, 110~120V ac
Alarm Output    1Amp,24V dc/0.5Amp, 110~120V ac

CASING

ABS

TEMPERATURE

0o°C~50o°C(32o°F~122o°F)

RELATIVE HUMIDITY

20%~95%

DIMENSION

L145 x W80 x H27.3mm
(L5 - 3 / 4" x W3 - 1 / 4" x H1")

WEIGHT

0.20Kg

PROXIMITY CARD-

Temic (readable writeable chip card)
