Product Kind:Access Control System

Product Name:Access control systemACS-200

1

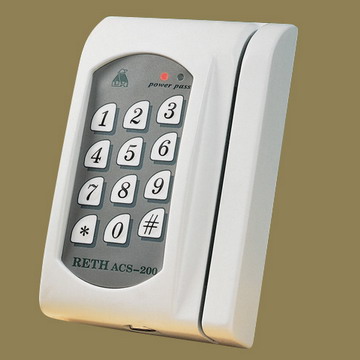

ACS-200  ACCESS CONTROL SYSTEM

FEATURES:

Memory recognizes 400 cards.

Expandable memory to recognize up to 1600 cards.



*

VARIOUS COMPATIBLE CARD

Operated by Track II magnetic strip card based on ISO standard specifications. Credit cards,  ATM cards and identification cards are all compatible

*

ENTRY METHODS
Functional card/password can access and set the entry method

 (1) CARD or PIN  (2) CARD & PIN  (3) CARD only

*

OPERATION
Status indication by LEDs and beeper for easy operation. Functional password or functional Card may be used for checking and modifying system functions. Time door remains open can be programmed from 01-50 seconds directly from the keyboard panel.

*

CARD LOST
Lost cards can be voided to prevent unauthorized use.

*

SYSTEM ALARM
Alarm will be activated and temporarily stop the system from function for one (1)minute when-The PIN is incorrectly entered and /or access with an unauthorized card is attempted four (4)consecutive times-System is impaired or destroyed.

*

PROGRAMMING
User can simply program cards and entry methods anytime with a 6-digit Functional Password or Functional Card to avoid the inconvenience of resettings. The EEPROM will memorize data after power failures.

*

POWER SUPPLY
External power supply for DC-12V operation. In case of power outages, a back-up device (UPS-12) maintains operation for up to 24 hours.

SPECIFICATION:

ITEM

ACS-200

KEYPAD

Membrane Type

10 Number Keys

2 Function Keys

READER

Sliding Type

MEMORY

EEPROM
RAM 2K (EXPANDABLE TO 8K)

INDICATOR

LED : Green – Door Open
   Red  – Stand by

POWER

SUPPLE

DC 9V- 12 V
110V pr 220V power adapter

POWER

CONSUMPTION

Stand by – 0.25 W
Operating – 0.5 W

OUTPUT

Lock Relay   1Amp, 24V dc / 0.5Amp, 110~120V ac
Tamper Switch 1 Amp, 24V dc / 0.5Amp, 110~120V ac

CASING

Zinc Alloy

FINISH

Powder Coating

TEMPERATURE

0 - 50 (32-122)

RELATIVE

HUMIDITY

20% - 95%

DIMENSION

L 147 x W 94 x H 38mm
(L 5-3/4
x W 3-3/4 x  H 1-1/2)

WEIGHT

0.85Kg



ACS SERIES - for public entrance
